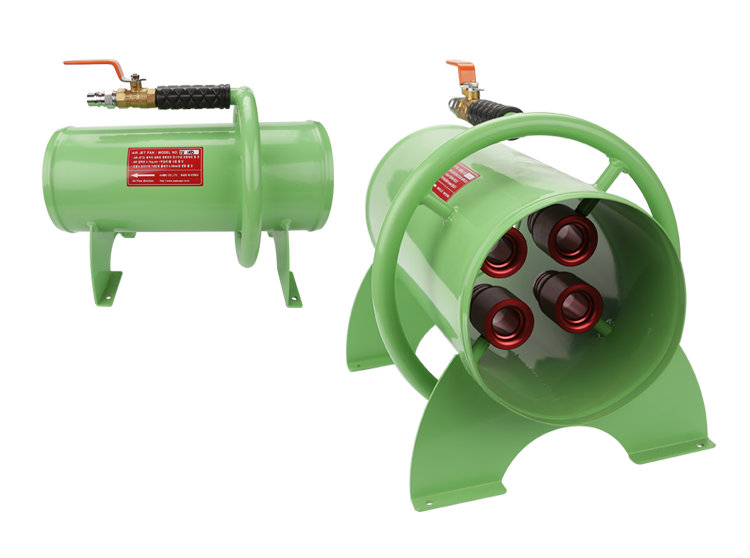

Air Jet Fan
Air Jet Fan
Air Jet Fan will create output flows up to 25 times their consumption rate. It can supply fresh air and discharge harmful gas, fume, dust etc.
Features
- The power source is compressed air. (4㎏ / ㎠)
- It is safe because there is no rotating body.
- No risk of explosion by sparks.
- No need for maintenance.
- Easy to move
Purpose to Use
- Discharging harmful gas etc.
- Supplying fresh air
- Drying and cooling
- Ventilation in airtight area (Coal Mine, Subway, Ship, Manhole etc.)
- It can be used instead of electric fans.
- In welding, painting, heat treatment, iron areas and foundry, shipbuilder
Specification
| Model | JF100 | JF150 | JF200 | JF300 |
|---|---|---|---|---|
| Inner Diameter(mm) | 100 | 150 | 200 | 300 |
| Height(mm) | 200 | 300 | 380 | 430 |
| Length(mm) | 230 | 360 | 460 | 508 |
| Inner Diameter of Air Coupler | 1/4" | 3/8" | 1/2" | 3/4" |
| Connection Part of Air Coupler(mm) | 6 | 13 | 16 | 19 |
| Air Consumtion(㎥ / hr) | 24 | 68 | 95 | 230 |
| Amplification Air Volume(㎥ / hr) | 680 | 1.630 | 2.720 | 4.960 |
| Weight(kg) | 2.5 | 5.0 | 8.8 | 14 |

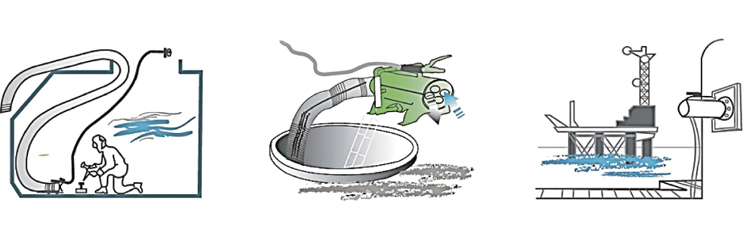

Application
Welding Gas Removal
Supply Fresh Air and Remove Harmful Gases
Removal of Harmful Gas in Tank
