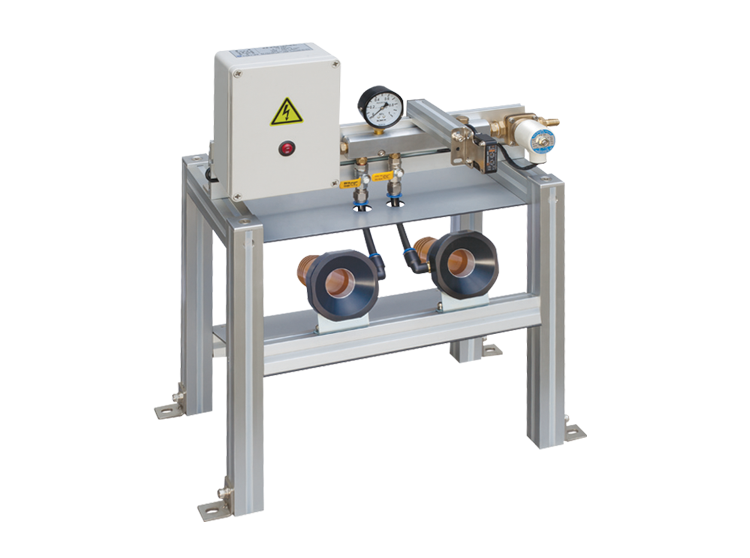

Skin Remover
Skin Remover
This machine can remove barks and soils of onions and root vegetables and let them out to the outlet with the firing power, vacuum pressure and air amplification instantaneously generated by the three-dimensional jet of compressed air. If you connect the water to the water inlet, peeling and cleaning effect is increased by generating mists in which water and compressed air are mixed.
Features
- Simple structure and easy to use.
- Available even by unskilled workers.
- Light-weight and compact size for easy moving/transportation.
- Long service life, no failure and lowmaintenance costs.
- Increased value of the products with no/less damage.
- Easy treatment of by-products.
- Less consumption of compressed air by sensor operation.

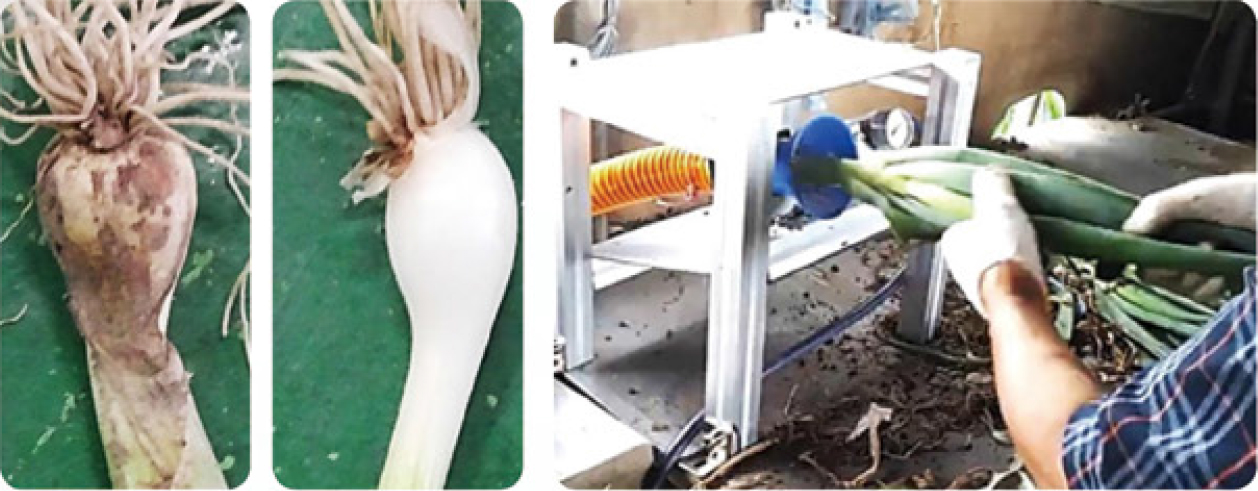

Peeling Before
Peeling After
Peeling Image
Specifications
| Main Body | 560 × 670 × 300 |
|---|---|
| Weight | 10kg |
| Power Source | Air Compressor (3-Phase,380V) / Electricity : AC 220V 60Hz |
| Inner Diameter Of Large Inlet | Ø40 |
| Inner Diameter Of Small Inlet | Ø25 |
Air Consumption By The Use Of Inlet (ℓ/min)
Time of peeling : 2~3 sec. / According to Quality of green onion, peeling time could be different.
| Pressure (kg/㎠) |
Large Inlet (Spring Onion) |
Small Inlet (Chives) |
Comp Specifications 'Reference' | |||
|---|---|---|---|---|---|---|
| 1EA | 2EA | 1EA | 2EA | Output (KW/HP) |
Air Content (ℓ/min) |
|
| 5 | 1,100 | 2,200 | 530 | 1,060 | 11 / 15 | 1,909 |
| 6 | 1,300 | 2,600 | 610 | 1,220 | 15 / 20 | 2,518 |
Capacity of Peeling
| Inlet | Large Inlet (Spring Onion) |
Small Inlet (Chives) |
Remark | ||
|---|---|---|---|---|---|
| Capacity of Peeling | 1EA | 2EA | 1EA | 2EA | |
| Peeling Amount (㎏/8h) |
672 | 1,344 | 100 | 200 | The working ration 70% |
| Peeling (Time/EA) |
3sec | 2sec | Spring Onion 1EA 100g / Chives 1EA 10g | ||
Capacity of peeling can be changed ad condition of onions
