AIR JET FAN
Maximum 25x air volume amplification AIR JET FAN
The AIR JET FAN is a ventilation fan that discharges fume, dust, odors and harmful gases and supplies fresh air. There is no risk of explosion as there is no rotating body.
Features
- The power source uses compressed air. (4kgf/cm2)
- It is safe because there is no rotating body.
- There is no risk of explosion by spark because it doesn’t use the electricity.
- Maintenance is unnecessary.
- Easy to move around.
Applications
-
Welding gas removal
-

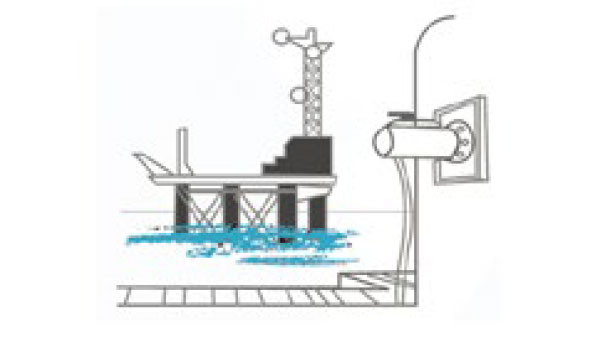

Supply of fresh air and removal of harmful gases
-

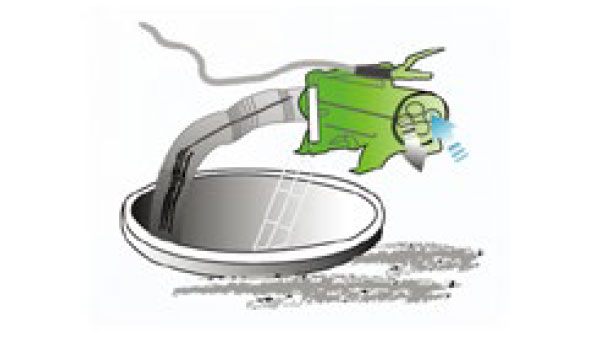

Remove harmful gases in the tank

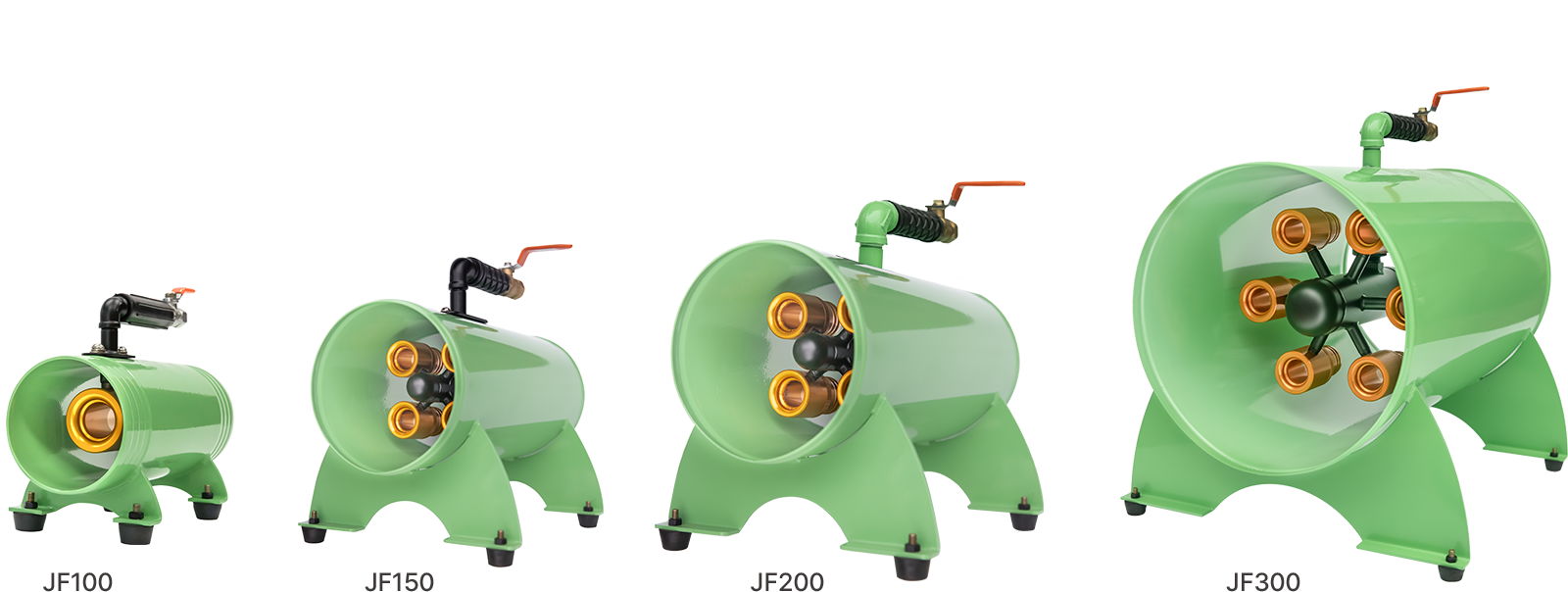

Specifications
| Model | Diameter (mm) |
Height (mm) |
Length (mm) |
Compressed Air Connection | Hose’s Inner Diameter(mm) | Hose’s Inner Diameter(m3/hr) | Air Volume Amplified(m3/hr) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| JF100 | 100 | 200 | 230 | 1/4”(8A) | 7 or more | 24 | 680 | 2.5 |
| JF150 | 150 | 300 | 360 | 1/2”(15A) | 9.5 or more | 68 | 1,630 | 5.0 |
| JF200 | 200 | 380 | 460 | 1/2”(15A) | 9.5 or more | 95 | 2,720 | 7.5 |
| JF300 | 300 | 430 | 508 | 1/2”(15A) | 13 or more | 160 | 4,960 | 11.0 |
* Maintain the Air pressure : 4kgf/cm2
ㆍSpecifications, dimensions, etc. listed may be subject to change without prior notice for product improvement.
