SUPERGUN

Replace Airgun with SUPERGUN!

Suction, blowing, suction and blowing at the same time

SUPERGUN is a multifunctional airgun that can simultaneously suction, blow, and control gas, liquid, and solid, and adjust the intensity through the knob. The shape of the suction port can be changed and rotated according to the purpose of use, and foreign substances such as deep grooves, gaps, hard-to-reach places, and corners that are impossible with general vacuum cleaners can be easily transported, collected, and removed, and in particular, it has excellent immediacy, so it has an optimal effect on the application of automation systems.

Since the SUPERGUN uses compressed air as a power source, it does not generate heat even after prolonged use, so it is possible to prevent the risk of explosion as well as the semi-permanent life of the instrument. SUPERGUN is a multifunctional Airgun that is essential for environmental improvement, developed with ease of use, safety and economy in mind.

Functional

  • 3 selective functions (suction, blow, suction + blow)
  • Intensity control through each knob (suction, blow)
  • Transfer and dust collection (solid, liquid, gas)
  • The inlet is replaced and rotated to suit the intended use

Safety

  • Since compressed air is used as a power source, there is no heat generation even if it is used for a long time
  • No electricity used, no risk of electric shock
  • There is no risk of explosion because there is no rotating body.

Affordability

  • Semi-permanent product with low maintenance cost
  • Tank is optional, not mandatory, and alternative containers can be used

Convenience

  • Simple structure makes it easy to use
  • Small and lightweight, easy to move
Shapes and models according to function

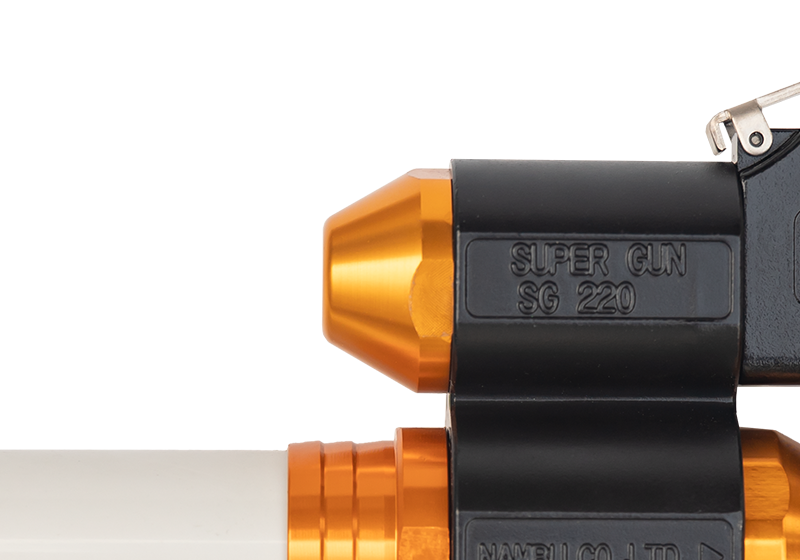

  • SG220 / SG100

    Choice of suction / Blow /
    Suction and blow

  • SG221 / SG101

    Suction only

  • SG222 / SG102

    Constant suction /
    Selective injection

  • SG103 / SG223

    Suction / Amplified blow /
    Direction change

ROTARY GUN (SG103 / SG223)
The rotary gun can be used amplified blowing, and suction by rotating the axis in any direction you want.
It has excellent fixing power, and does not wobble.
360-degree revolution (Suction side, body)
No need to change posture.
When use the suction type, it can be assembled with the hose, dust collector.
MULTI DUST COLLECTOR (T20, CT20)
T20 can be used buckets in a variety of sizes. (ø285~ø315mm, height 360-380mm)
It can be used the various type of bags. (PE, paper, plastic, etc.)
Able to switch the filter type.
Standard type : Normal foreign substance
Cyclone type: Wet-type powder, particles, etc.
Easy to separate, and empty out
Weight : 20kg
Size(W×L×H): 500×500×800
Model-specific functions
Functions
Model
Suction Blow Suction+
Blow
Suction+
Ion blow
Amplified
blow
Direction
change
Mounting Remarks
SG100 / SG220
SG100M / SG220M Automation System
SG101 / SG201
SG102 / SG202
SG102G / SG222 Static Electricity Removal
SG102MG / SG222MG Static Electricity Removal, Automation System
SG103 / SG223 Confined, Small Space , Direction Change
SG221F Floor Use Exclusive
SD Series Automation System
Usage examples

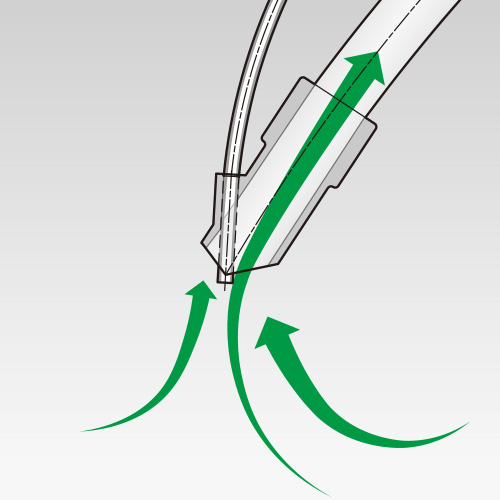

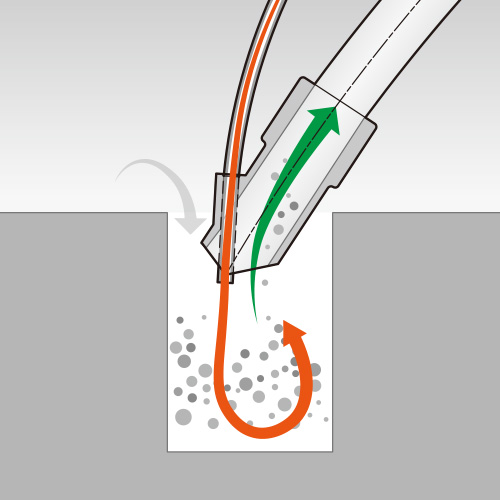

  • Deep hole blowing
    + Suction

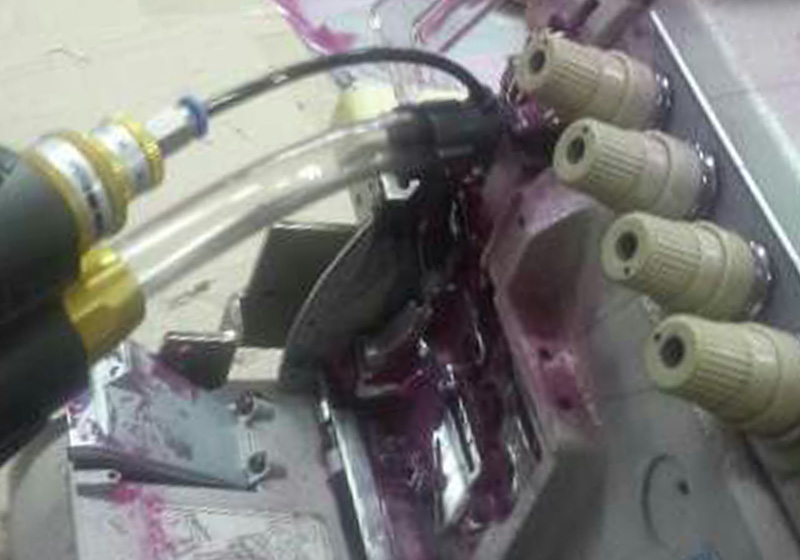

  • Suction

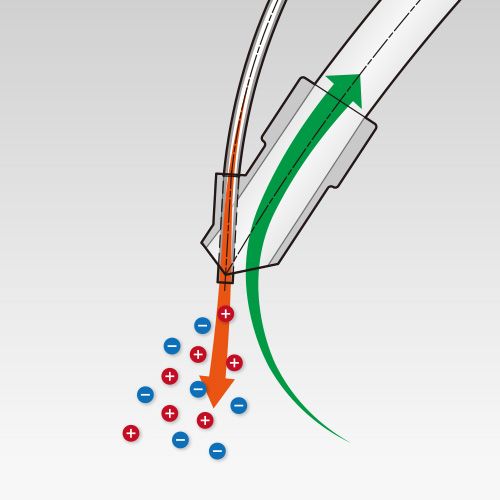

  • Suction +
    Ion Blow

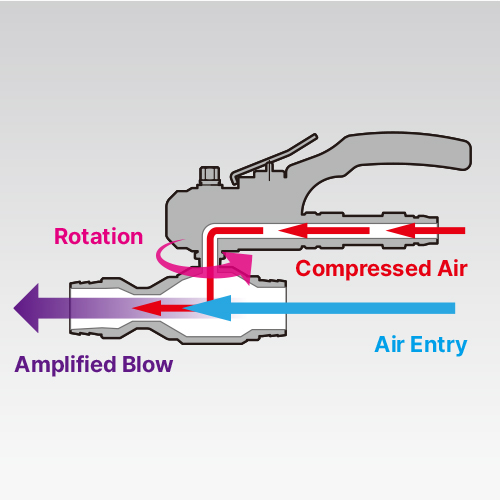

  • Amplified blow
    (Direction change)

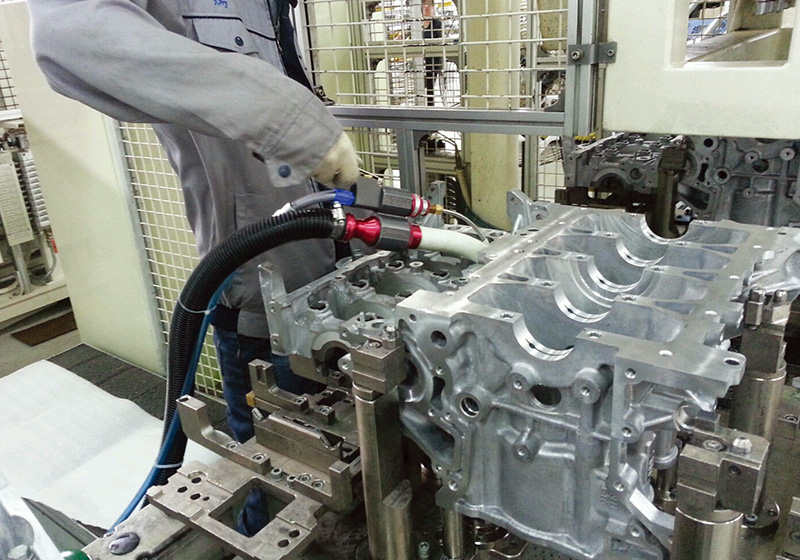

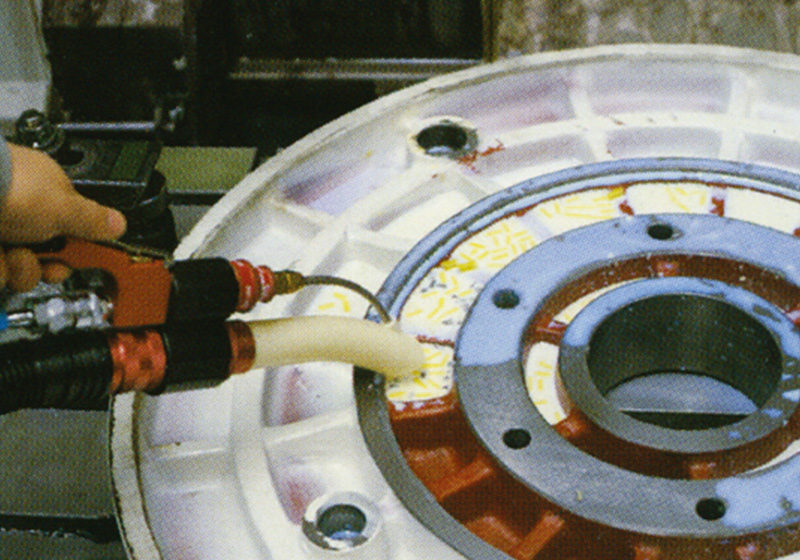

Application

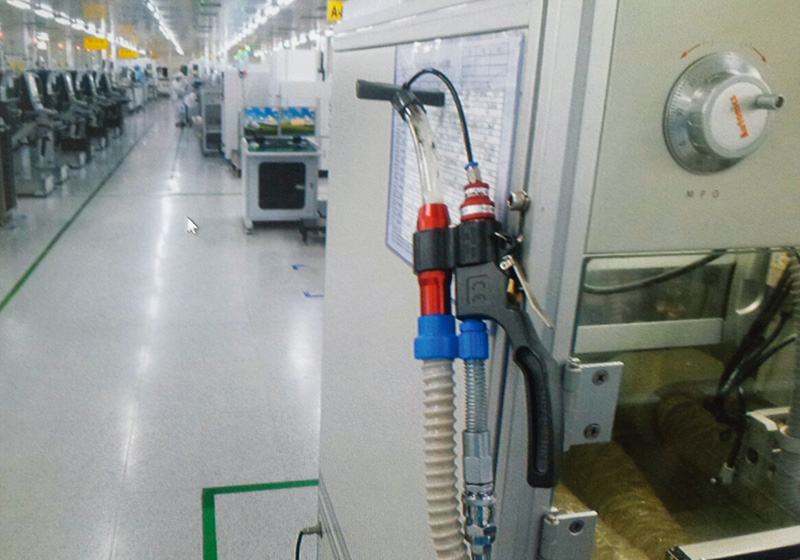

Cleaning room (electronics, semiconductors, research institutes, etc.)
Processing and assembly sites (shipbuilding, aviation, electrical and electronic, steelworks, iron steelmaking etc.)

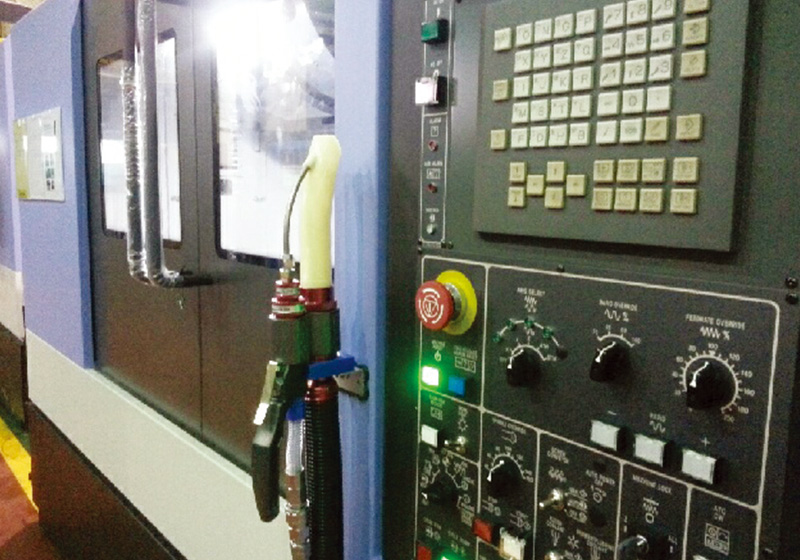

Automation system

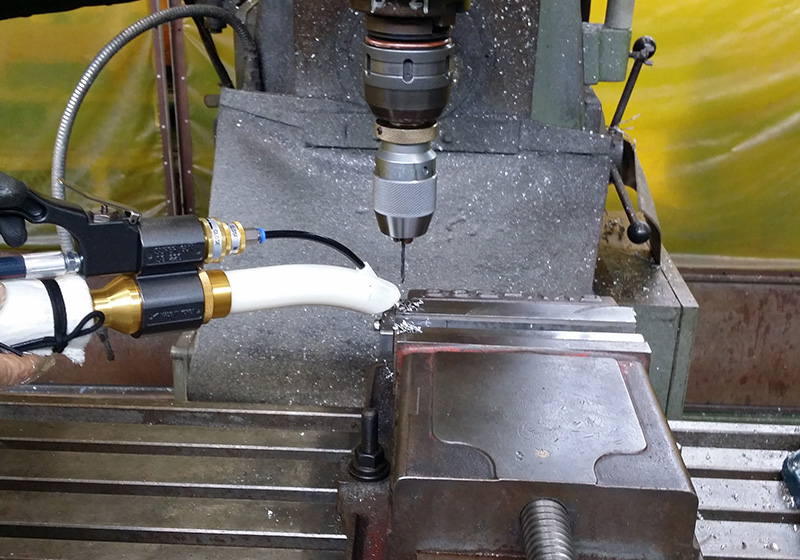

Chips and residual water removal from places such as deep holes
Areas where microscopic contaminants affect products (removes 0.3μm to 99.97%)
Places where oil mist and explosive gas exist (explosion-proof)
Pre-painting treatment, semiconductor, coating, plastic, electronic product assembly, etc.

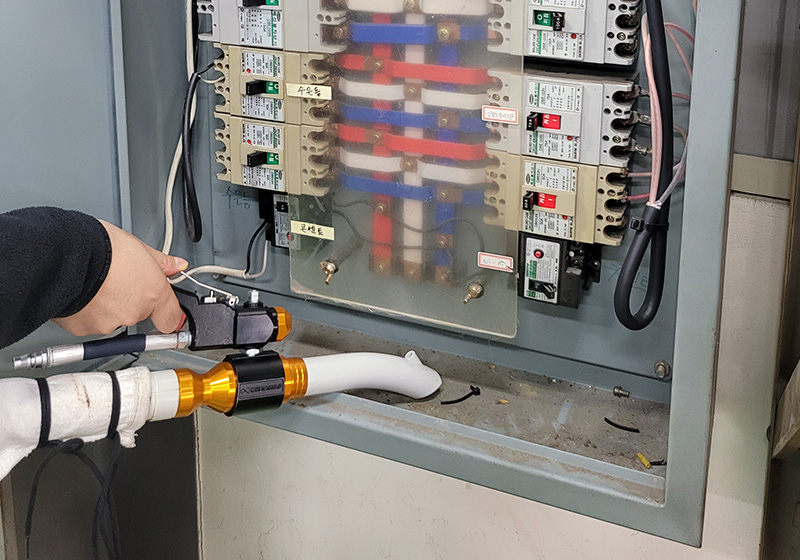

Areas where static electricity is generated

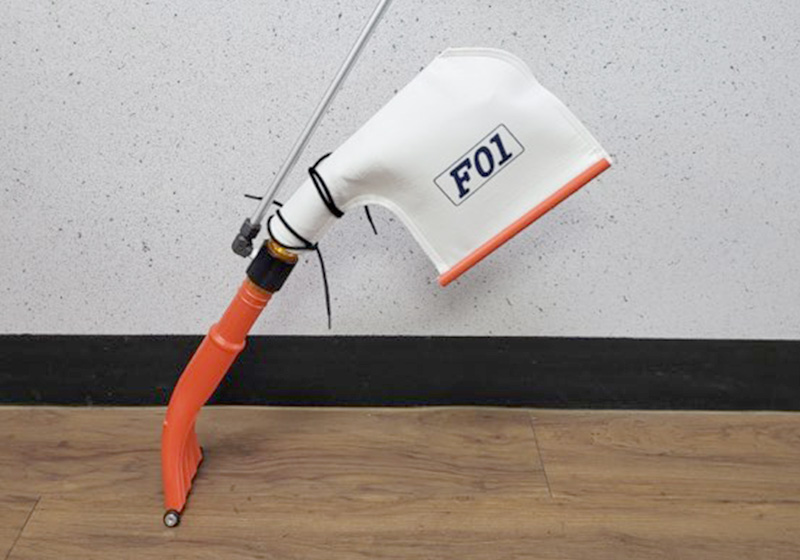

  • SG221F (Floor use exclusive)

Terms of use

Spec of Compressor

Model SG10x Series SG22x Series
Output 5.5kW (7.5hp) or more 7.5kW (10hp) or more
Working pressure 4kgf/cm2 (57psi) or more 4kgf/cm2 (57psi) or more
Volume Flow Rate 934ℓ/min or more 1,272ℓ/min or more
Air hose ø8 or more ø12 or more
Tank capacity 150ℓ or more 150ℓ or more
Vacuum level and air consumption
Working Pressure
Model
4kgf/cm2 5kgf/cm2
57psi 71psi
SG10x Series* Vacuum degree mmHg 250 290
mmAq 3,400 3,944
Air consumption ℓ/min 430 520
SCFM 15 19
SG22x Series** Vacuum degree mmHg 110 140
mmAq 1,496 1,904
Air consumption ℓ/min 570 720
SCFM 21 26
SD360 Vacuum degree mmHg 70 90
mmAq 951 1,223
Air consumption ℓ/min 1,250 1,500
SCFM 45 54

* SD100 vacuum level increased by approximately 20% over SG100

** SD220 vacuum level increased by approximately 20% over SG220
